Description
Certified to:
- FAA AC 70/7460-1
Compliant to:
- FCC Rules and Regulations
FEATURES/BENEFITS:

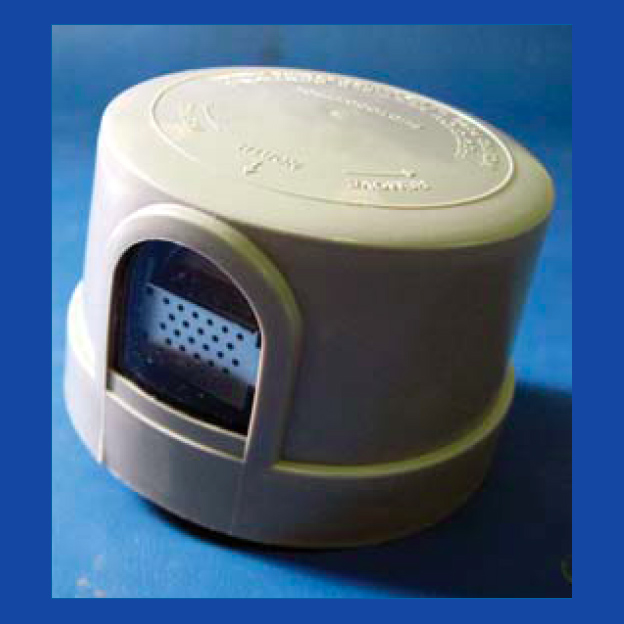

- Housing: UV stabilized high-impact polypropylene
- Photocell: 1-inch cadmium sulfide light sensitive element
- Turn-on/Turn-off: 35 foot-candles turn-on; 58 foot-candles turn-off
- Time Delay: Minimum 15 seconds
- Switch Type: Single-pole, single-throw. Contact position at night normally closed
- Temperature Range: -40°F to 170°F
- Power Consumption: 1.1 watts average at 120 VAC
- Rated Life: 5,000 operations minimum at rated load
- Surge Protection
- Dimensions: 3.07″ diameter, 2.15″ high
- Built-in time delay prevents false cycling caused by lightning flashes or stray headlights
- Meets FAA/FCC requirements for airway obstruction lighting
