ALTR GENERAL USE ALTERNATING LIGHT CONTROL WITH TRANSFER RELAY

ALTR GENERAL USE ALTERNATING LIGHT CONTROL WITH TRANSFER RELAY

📄 Download Datasheet: ALTR-GENERAL-USE-ALTERNATING-LIGHT-CONTROL-WITH-TRANSFER-RELAY.pdf

ALTR GENERAL USE ALTERNATING LIGHT CONTROL WITH TRANSFER RELAY

APPLICATION:

  • The ALTR alternates between each light in a double obstruction light assembly each time the tower lights are energized by the photo-control, ensuring equal usage of the lights over the life of the lamps. In the event one of the lights fails, the ALTR automatically energizes the operational light and provides an output for alarm monitoring. The ALTR provides an economical solution for applications where the obstruction lights are difficult and/or expensive to service such as towers or stacks that are inaccessible through normal methods.
SKU: altr-general-use-alternating-light-control-transfe Category: Tag:

Description

FEATURES/BENEFITS:

  • Solid state components for high reliability encapsulated to protect against harsh conditions and vibration

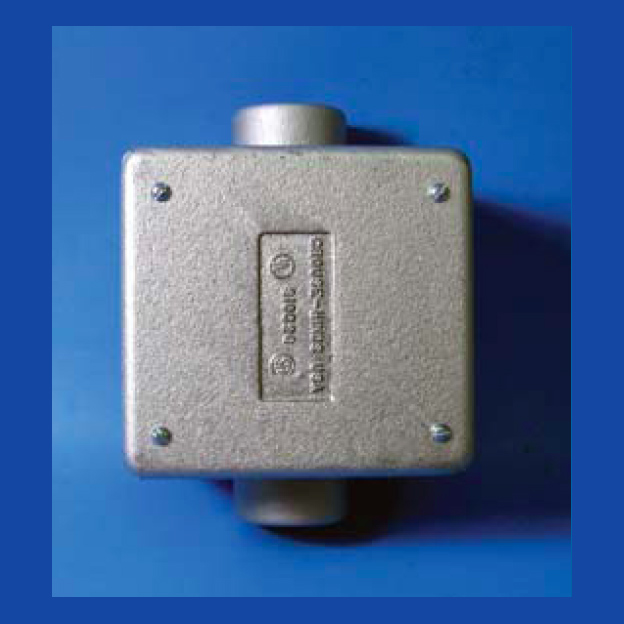

  • Cast aluminum 4″ x 4″ x 3″ box with one-inch threaded hubs at top and bottom/li>
  • 120VAC failure output available for remote alarming
  • Suitable for 50 or 60Hz frequency power
  • Line voltage transient protection
  • Low power consumption
  • Designed to connect to a Double Head, L-810 Light Assembly (Incandescent or LED)
  • ALTR provides maximum life on both lights
  • Doubles the time between service calls
  • When used with an LED assembly, mean time to failure can be up to 20+ years
