Description
Certified to:
- FAA AC 70/7460-1
Compliant to:
- FCC Rules and Regulations
FEATURES/BENEFITS:
- Meets FAA and FCC requirements
- Solid-state components for reliability
- Each flasher circuit operates up to 2,000W of lamp load or as low as a single obstruction light
- Zero voltage switching for longer lamp life
- Automatic operation using a single PEC photoelectric controller to directly switch the 1-circuit and 2-circuit OLFs and to activate an OLA lighting contactor to switch the 3-circuit OLF
- Single circuit OLF models have a cast aluminum housing with one-inch threaded hub at top and bottom (70007; 70207; 1-1/2 inch hubs on 70060; 70260)

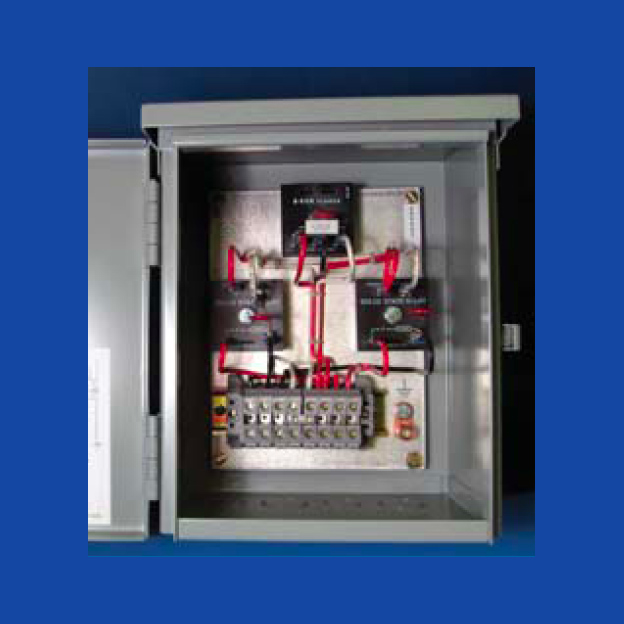

- Raintight NEMA 3R box with bottom knockouts (2-circuit and 3-circuit OLFs)
- Operates on 60 or 50Hz frequency power
- Voltage tolerance ±15%
- Optional NEMA 4 enclosure (suffix -N4)
- OptionalRFsuppressionforhotAMtowers(suffix-RF)
