OTR GENERAL USE TRANSFER RELAY ASSEMBLY

APPLICATION:

The OTR can provide fault monitoring of a steady burning side light. Upon failure of the first lamp, the relay will transfer power to the standby lamp. It will support 100-watt/230VAC, 116-watt/120VAC or 116-watt / 230VAC operation of one EOL or VAW (L810) dual headside lights. Normal operation resumes with replacement of failed lamp.

Description

FEATURES/BENEFITS:

Solid state components for high reliability

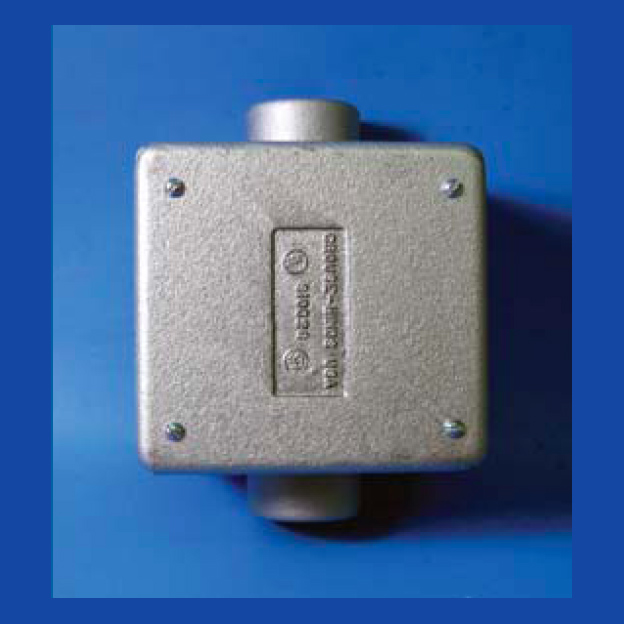

Cast aluminum 4″ x 4″ x 3″ box with one-inch threaded hubs at top and bottom
Instantaneous switching when a failure occurs
Universal voltage: 120 to 240VAC
Suitable for 50 or 60Hz frequency power
Line voltage output: 125 watt maximum
No trip delay
Operating temperature : -40°F to 150°F | -40°C to 65°C
May be purchased mated to a Double EOL Light Assembly as a complete, ready to use solution
