Description
Certified to:
- FAA AC 70/7460-1
Compliant to:
- Class I, Division 2, Groups B, C & D
- FCC Rules and Regulations
FEATURES/BENEFITS:

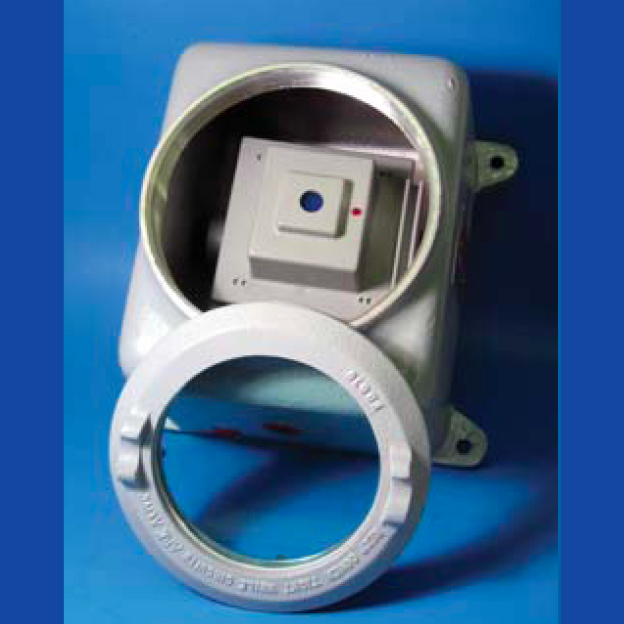

- Enclosure (NEMA 7/4X) is rated for hazardous duty Class I, Div 2, Group D (70061; 70261)
- Groups B, C and D (UNI-70061; UNI-70261)
- Bottom side of cast housing fitted with 1″ NPT hub
- Factory calibrated Light Actuation Levels: | Energized at 35fc and below | De-energized above 60fc
- Power: 120 VAC ± 20%; 50/60Hz | 230 VAC ± 20%; 50/60Hz
- Two SPST N.O. 30 amp contacts (see connection diagrams)
- Screw terminals for up to #8 AWG wire
- Meets all FAA Specifications
- LED Power Indicator
NOTE: For Class I, Groups B and C, Zone 1, Groups llB and H2, all conduit entries must be sealed with approved sealing fittings.
