L856/L857 GENERAL USE

XENON WHITE BEACON HIGH INTENSITY

APPLICATION:

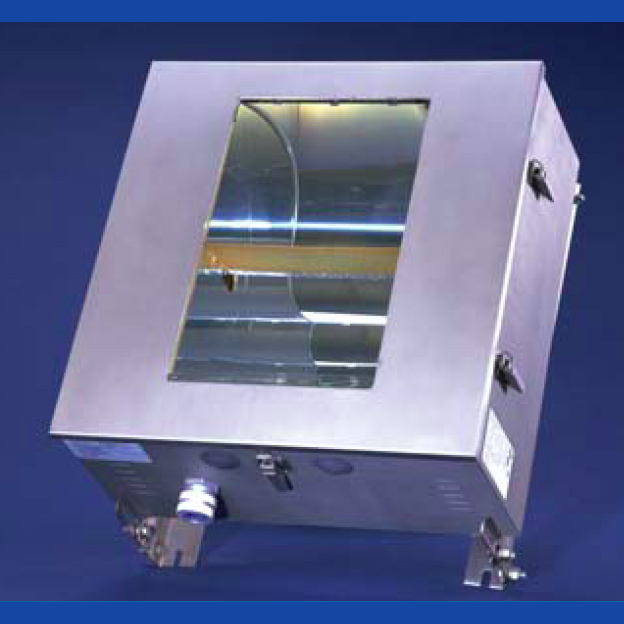

  • The CHB205 Beacon, when combined with the CHC121W Controller or the CHC140W Controller is a high intensity white strobe system that provides a white strobe for day, twilight, and night operation for lighting structures over 500 feet high and is available for Catenary style lighting L-857. Since each beacon provides 120 degree coverage, a minimum of three beacons is required at each level to attain 360 degree coverage on most structures. To determine the number of tiers and placement requirements, please refer to the appropriate publications of your respective governing body.
  • The beacon is operated on a continuous 24-hour basis generating 270,000 (L-856), 200,000 (ICAO Type A), 140,000 (L-857) or 100,000 (ICAO Type B) effective candelas during the daytime period, 20,000 effective candelas in the twilight period, 2,000 (optional 4,000) effective candelas during night period when configured with the CHC121W or CHC140W Controller.
SKU: l856l857-general-use-xenon-white-beacon-high-inten Category: Tag:

Description

Certified to:

  • FAA AC 150/2345-43F: L-856 & L-857

Compliant to:

  • FCC Rules and Regulations
  • Canadian Standards Association (CSA)
  • ICAO (Annex 14)
  • Type A or B (white)

FEATURES/BENEFITS:

  • FAA approved L-856 or L-857
  • Meets or exceeds ICAO type A or type B (white) specifications
  • NEMA 4X stainless steel enclosure
  • Low operating and maintenance costs with long life flashtubes
  • Horizontal 120 degree and vertical 5 degree beam spread
  • Complete technical data and application assistance available
