L864/L865 GENERAL USE

XENON DUAL BEACON MEDIUM INTENSITY

APPLICATION:

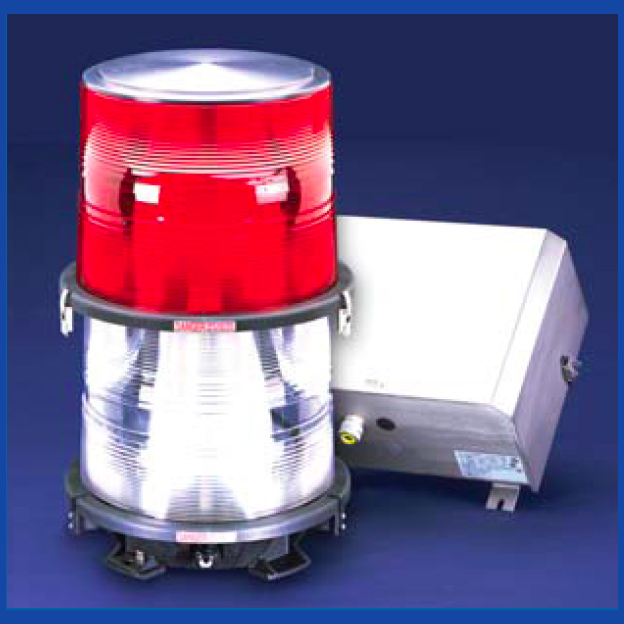

  • The CHB324 is a medium intensity dual-beacon system that provides a white beacon for day operation and a red beacon for night operation for lighting structures up to 500 feet high. A single beacon provides 360 degree coverage for structures up to 350 feet. Three beacons provide proper marking for structures between 351 and 500 feet high. The beacon is available in 60Hz or 50Hz power options. Power consumption is 90% less than conventional incandescent beacons.
  • The beacon is operated on a continuous 24 hour basis generating 20,000 effective candelas during the white daytime/twilight period and automatically reduces to 2,000 effective candelas during red night period.
SKU: l864l865-general-use-xenon-dual-beacon-medium-inte Category: Tag:

Description

Certified to:

  • FAA AC 150/5345-43F: L-864 & L-865

Compliant to:

  • FCC Rules and Regulations
  • Canadian Standards Association (CSA)
  • ICAO Type A (white) or B (red)

FEATURES/BENEFITS:

  • FAA approved L-864 & L-865
  • Meets or exceeds ICAO specifications
  • Power consumption is 90% less than conventional incandescent beacons.
  • Low operating and maintenance costs with long life flashtubes
  • Power supply includes 12 LED indicators to convey operating status
  • NEMA 4X stainless steel enclosure
  • Special circuitry eliminates the lens failure due to ozone corrosion common to all other beacons
  • Horizontal 360 degree and vertical 5 degree beam spread
  • Very narrow, controlled beam
  • Smallest size and wind loading
  • AC or DC operation available
  • Remote alarm indication
