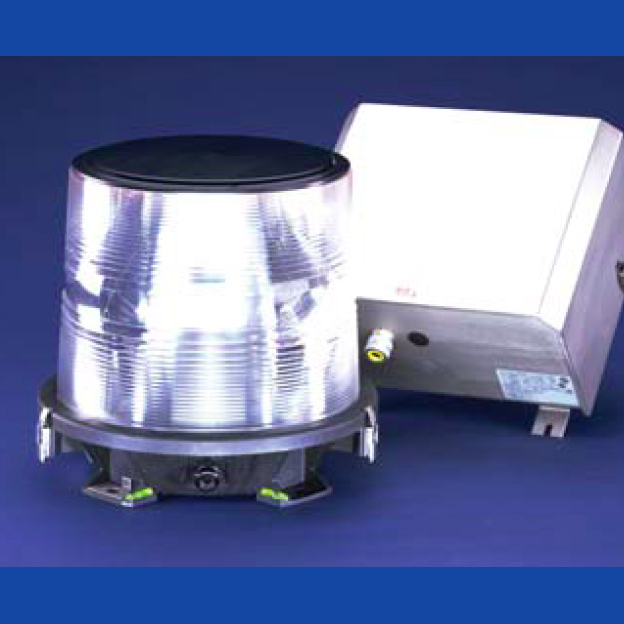

L865/L866 GENERAL USE XENON WHITE BEACON MEDIUM INTENSITY

L865/L866 GENERAL USE XENON WHITE BEACON MEDIUM INTENSITY

📄 Download Datasheet: L865-L866-GENERAL-USE-XENON-WHITE-BEACON-MEDIUM-INTENSITY.pdf

L865/L866 GENERAL USE

XENON WHITE BEACON MEDIUM INTENSITY

APPLICATION:

  • The CHB310 is a medium intensity white beacon system that provides a white beacon for day and night operation for lighting structures up to 500 feet high and is available for Catenary style lighting (L-866). A single beacon provides 360° coverage for structures up to 350 feet. Three beacons provide proper marking for structures between 350 and 500 feet high. The beacon is also available in 60Hz or 50Hz power options. Power consumption is 90% less than conventional incandescent beacons.
  • The beacon is operated on a continuous 24 hours basis generating 20,000 effective candelas during the daytime/twilight period and automatically reduces to 2,000 effective candelas during night period.
SKU: l865l866-general-use-xenon-white-beacon-medium-int Category: Tag:

Description

Certified to:

  • FAA AC 150/5345-43F: L-865 & L-866

Compliant to:

  • FCC Rules and Regulations
  • Canadian Standards Association (CSA)
  • ICAO (Annex 14)
  • Type A (white)

FEATURES/BENEFITS:

  • FAA approved L-865 & L-866
  • Meets or exceeds ICAO specifications
  • Power consumption is 90% less than conventional incandescent beacons
  • Low operating and maintenance costs with long life flashtubes
  • NEMA 4X stainless steel enclosure
  • Special circuitry eliminates the lens failure due to ozone corrosion common to all other beacons
  • Horizontal 360 degree and vertical 5 degree beam spread
  • Very narrow, controlled beam
  • Smallest size and wind loading
  • AC or DC operation available
  • Remote alarm indication
  • Complete technical data and application assistance available
