LAHSO (Land and Hold Short Lighting System Power and Control Unit (PCU))

LAHSO (Land and Hold Short Lighting System Power and Control Unit (PCU))

📄 Download Datasheet: LAHSO.pdf

Applications:

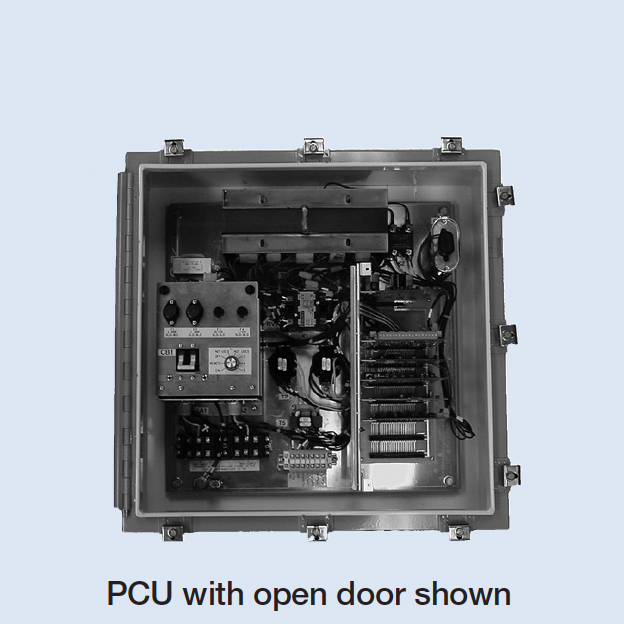

The L-884 power and control unit (PCU) is a power supply designed to power and simultaneously pulse all lights in a land and hold short operations (LAHSO) light bar.

SKU: lahso-land-and-hold-short-lighting-system-power-an Category: Tag:

Description

Compliances:

  • FAA, AC 150/5345-54: L-884

Features:

  • ETL Certified
  • Style I: For indoor use (all units include photo cell)
  • Unit can be field configured for MIRL or HIRL (HIRL, configured from factory) operation
  • Alarm relays provided for discrete alarm indication for each monitored parameter
  • Plug-in printed circuit cards with LED diagnostic indicators
  • Unit can operate 6 or 7 light LAHSO light bar (Reference LHS P1 version, page 4.21)
  • -55°C to +70°C temperature operation range
  • Optional 24VDC or 48VDC circuit boards for user supplied external control voltage. 120VAC internal/external control voltage circuit board is factory supplied.
  • Tower control panel available as an accessory for installation in ATC tower
