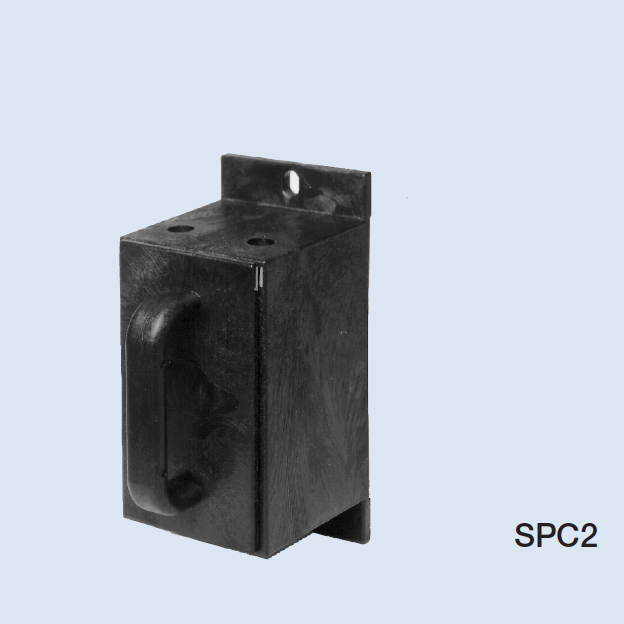

SPC (Series Plug Cutout Type S-1 (MODEL 2))

SPC (Series Plug Cutout Type S-1 (MODEL 2))

📄 Download Datasheet: SPC.pdf

Applications:

The Series Plug Cutout Type S-1 is a device installed at the constant current regulator (CCR) output through which the series circuit passes. With the handle assembly removed, the SPC isolates the CCR output from airfield series loop for maintenance personnel safety. The SPC also shorts the series loop and shorts the regulator secondary aiding in maintenance checks and troubleshooting.*

SKU: spc-series-plug-cutout-type-s-1-model-2 Category: Tag:

Description

Compliances:

  • FAA AC 150/5340

Features:

  • Provides positive proof that the series circuit cannot be energized during maintenance
  • Shorts the series circuit for maintenance continuity checks
  • Shorts the regulator secondary for maintenance checks
  • Body constructed of high strength engineered plastics
  • Suitable for 6.6A or 20A circuits
  • Protected against arcing
